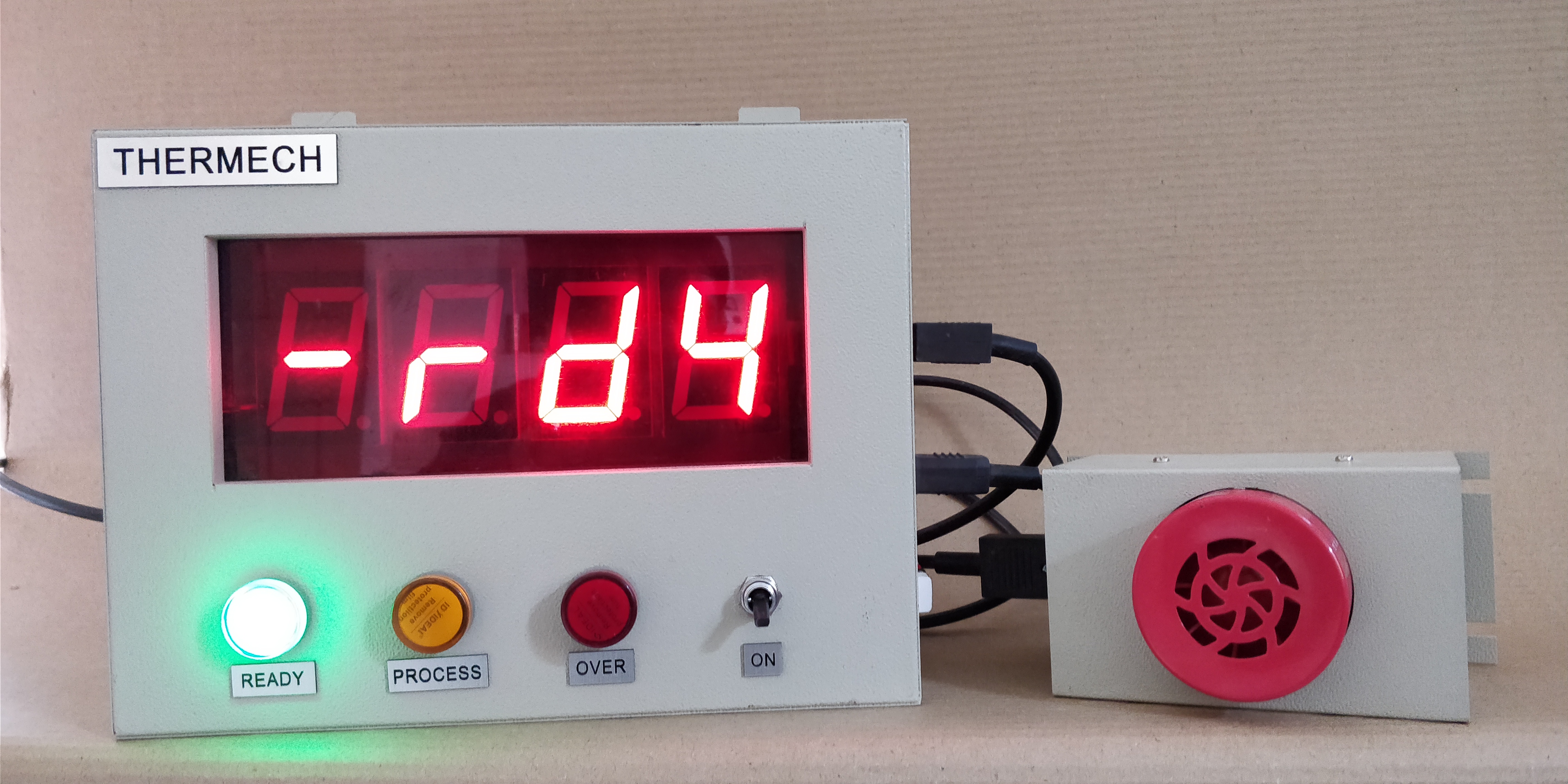

WALL MOUNT PYROMETER
TECHNICAL SPECIFICATION
| MODEL | TI01F |
| INPUT | R / S / B – FACTORY SET |
| RANGE | 800 TO 1750˚C |
| ACCURACY | ±1˚C |
| RESOLUTION | 1˚C |
| TECHNIQUE | PLATEAU DETECTION |
| DISPLAY | 4 DIGITS 2" HEIGHT RED LED DISPLAY |
| MOUNTING | WALL MOUNTING |
| POWER SUPPLY | 220 V AC, 50 Hz ± 10% |
| OUTPUT | PROCESS STATUS INDICATION GREEN : READY YELLOW : PROCESS RED : OVER AUDIO SIGNAL: FORCED AIR HOOTER ON COMPLETION OF PROCESS |
CONNECTIONS
| TC + - | TO CONNECT LANCE BLACK - POSITIVE RED - NEGETIVE |
| HOOTER | TO CONNECT HOOTER SOCKET |
| 230V AC 50 Hz | CONNECT POWER SUPPLY SOCKET |
OPTIONAL ACCESSORIES |
LANCE ASSEMBLY |
FOR MORE DEATILS PLEASE CONTACT OUR SALES TEAM.
