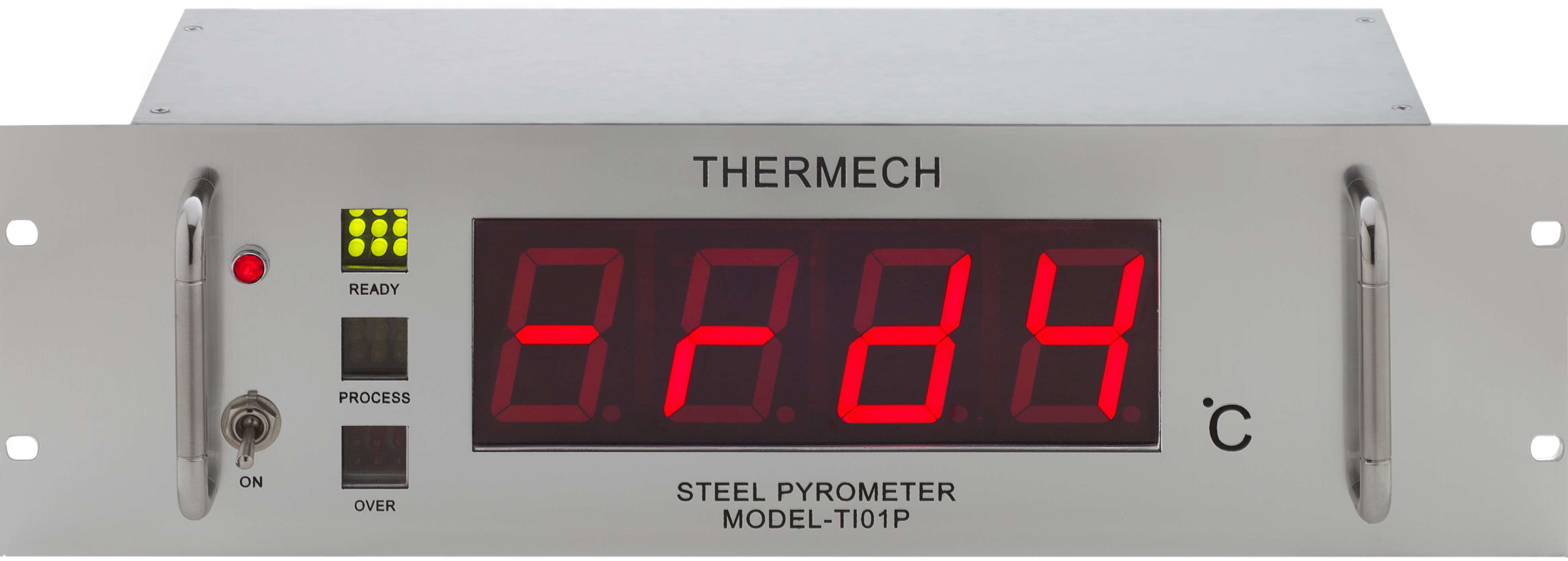

PANEL MOUNT PYROMETER
TECHNICAL SPECIFICATION
| MODEL | TI01P |
| INPUT | R / S / B – FACTORY SET |
| RANGE | 800 TO 1750˚C |
| ACCURACY | ±1˚C |
| RESOLUTION | 1˚C |
| TECHNIQUE | PLATEAU DETECTION |
| DISPLAY | 4 DIGITS 2" HEIGHT RED LED DISPLAY |
| DIMENSIONS | W X H X D : 480X140X200 mm |
| PANEL CUTOUT | INSTRUMENTS : W X H : 404X136 mm HOOTER : W X H : 122X94 mm |
| MOUNTING | PANEL MOUNTING |
| POWER SUPPLY | 220 V AC, 50 Hz ± 10% |
| OUTPUT | PROCESS STATUS INDICATION GREEN : READY YELLOW : PROCESS RED : OVER AUDIO SIGNAL: FORCED AIR HOOTER ON COMPLETION OF PROCESS |
| EXTRA DISPLAY COMMUNICATION | RS-232 COMMUNICATION |
CONNECTIONS
| TC + - | TO CONNECT LANCE BLACK - POSITIVE RED - NEGETIVE |
| HOOTER | TO CONNECT HOOTER SOCKET |
| EXTRA DISPLAY | TO CONNECT THERMECH REMOTE DISPLAY THROUGH TWO PIN BNC CONNECTOR |
| 230V AC 50 Hz | CONNECT POWER SUPPLY SOCKET |
| FUSE mA | 1000 mA Fuse |
OPTIONAL ACCESSORIES |
FLOOR MOUNTING PANEL LANCE ASSEMBLY EXTRA DISPLAY (4” / 6”DISPLAY HEIGHT) |
